SONARWORKS SOUND Id Reference Measurement Microphone
$120.00
In Stock
SKU
232281
- Catalog #: 12-41468

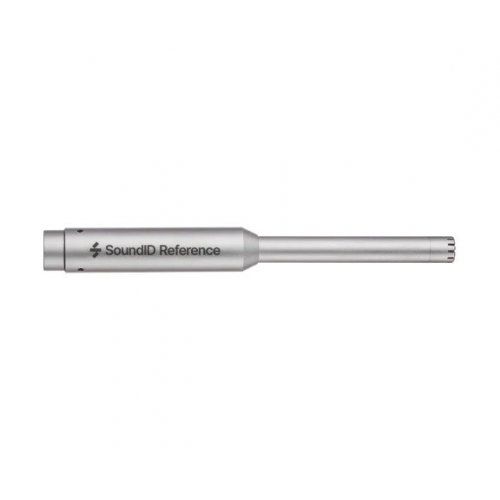

SOUND ID Reference Measurement Microphone
The SoundID Reference microphone is intended to be used as a tool for making high-precision measurements of acoustic sound pressure and acoustic pressure changes within the audible frequency range of 20Hz to 20kHz.
The SoundID Reference microphone can be used with the following software and components only:
- SoundID product software packages
- Sonarworks-provided microphone calibration files
- Audio interfaces capable of +48V Phantom Power supply at its inputs
- Balanced XLR cables as the connection medium between the SoundID Reference microphone and the audio interface of choice
- Third-party acoustic measurement software with Sonarworks-provided individual mic calibration profiles
Microphone Specifications
- Houses pre-polarized electret-condenser capsule
- Frequency response: 20 Hz - 20kHz with supplied calibration profile
- Omnidirectional polar pattern
- Sensitivity is rated at -37dB/Pa (14 mV)
- Self noise: 24 dB
- S/N ratio: 70 dB
- Dynamic range: 106dB
- Maximum SPL: 132 dB SPL
